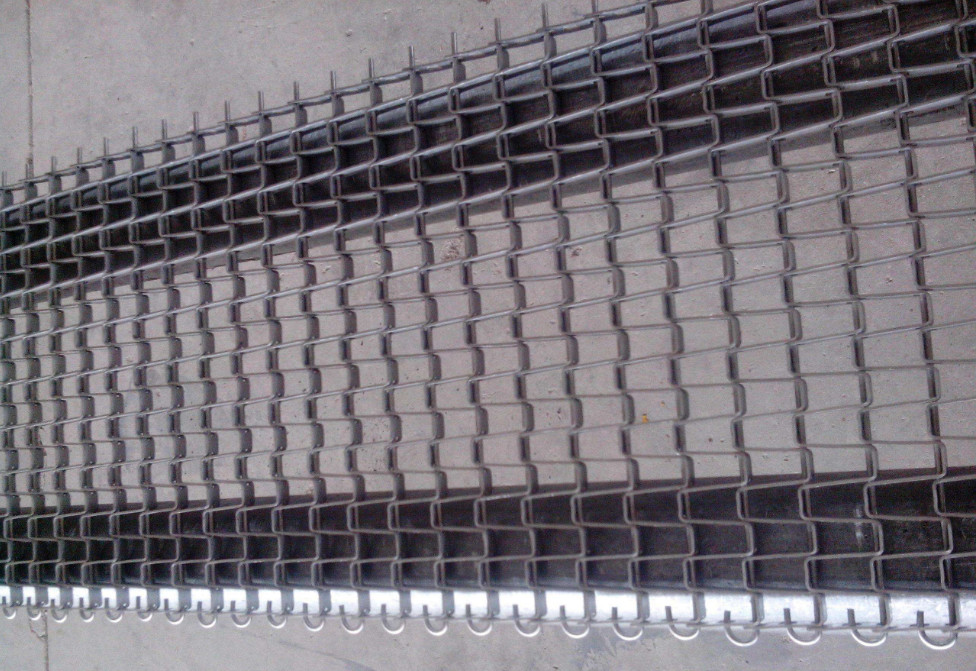

China Stainless Steel Wire Chain Mesh Conveyor Belt For Furnace
China stainless steel wire chain mesh conveyor belt for furnace With smooth surface, strong degree is high, strong corrosion resistance, tensile strength, good permeability, not easy to deformation, durability and other special functions.
The Universal Weave provides a smooth conveying surface and excellent air circulation and liquid drainage. Universal weaves can be used at temperatures of -40 Degrees F to 2100 Degrees F. Typical applications include glazing ceramics, copper brazing steel parts and cooking, baking and cleaning in the food processing industry.
Materials
First class stainless steel wire in SUS201, 202, 302, 304, 316, 304L, 310, 310S , 316L, 321, etc.
Iron wire, galvanized wire, steel wire (middle carbon, high carbon), copper wire, etc.
Any other material as your requirement.
Chain edge conveyor belt properties
| Material | Any grade stainless steel |
| Standrad | DIN, JIS |
| Type | Wire mesh conveyor belt |
| Pitch Size | Can be custom design |
| Thickness | 1.5-3.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | can be used in almost every conveyor solution |
| Introduction | chain edge conveyor belt is reinforced by rod and chain for high load purpose. |
| Features | Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance It also has advantage of stable, fine and high precision filtering performance. Long service life |
The belts layout graphic
Stainless steel properties
| Grade | Composition(%) | Temperature resisting | Specifications |
| C | Si | Mn | Ni | Cr | Mo |
| 1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
| 1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | |
| 304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
| 304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
| 316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
| 316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
| 309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
| 314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
| Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
