Industrial Roller Chain Short Pitch Precision Stainless Steel Roller Conveyor Chain
Introduction:
Stainless Steel Roller Chain is primarily used in highly abrasive applications due to the anti-corrosive properties of stainless steel. The disadvantage to using stainless steel chain is that in strength demanding applications, it can wear out quicker due to stainless steel being a much softer material than carbon steel. However, we do offer a special series of stainless steel roller chain that has the same strength of the carbon steel equivalent.
Application:
Widely used in food, chemical, pharmaceutical, rubber, printing, silk and other machinery, and for a variety of import and export machinery, is an excellent equipment for modern equipment.
Stainless steel properties:
| Grade | Composition(%) | Temperature resisting | Specifications |
| C | Si | Mn | Ni | Cr | Mo |
| 1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
| 1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
| 304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
| 304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
| 316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
| 316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
| 309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
| 314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
| Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |

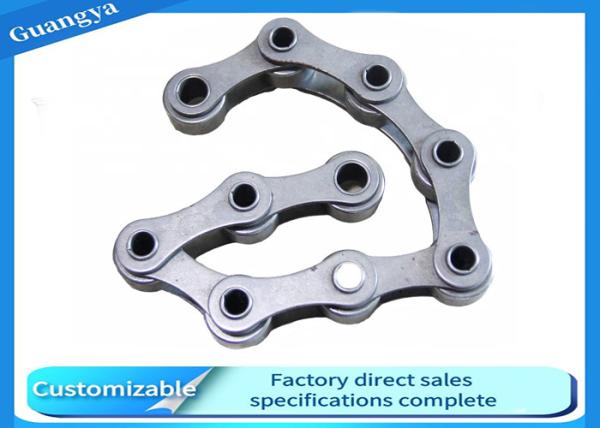

Here are some actual photos of this product:
The reasons for choosing us:
1.Excellent company background
Shenzhen guangya Wire Belt Co was founded in 2005 for production of stainless steel wire conveyor belt, plate belt, stainless steel roller chain, teflon belt and machinery transmission components. Being ISO and SGS certified company, we're well recognized for high quality and one stop purchase solution. Our products are widely used in medcine, chemical, printing and coating machinery industries. We have built up long term partnership with clients in both domestic and oversea countries for reliable quality products.
2.Quick Production line
We have a solid production team with over 12 years and each operator has been working in this industry for more than 5 years. At the same time, we have more than 50 existing moulds to use directly that means we can produce the specified product quickly.
3.Custom design
We have a professional engineering department for quick design upon customer requirements.
4.Competitive price
We are running mass production model and have built up advanced partnership with source material providers. We can save much cost and provide very promotional offer to clients.
5.Best pre-sale and after-sales service
We have professional pre-sale and after-sales service team which consist of many people and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.
Other FAQ
1.Q:How long will it take to produce and how long will it take to get the goods?
A:It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.Generally speaking, you will receive the package within 30 days and if you have any logistics problem, please contact us in time
2.Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
3.Q:How can I know that it is qualified and has passed the certificate?
A:This is simple, you just need to find an engineer to pass the technical verification agreed by both parties before receiving the goods.
P.S:If you require a unique belt or conveyor to deliver the best conveyor performance, we will not hesitate to design and deliver a totally customised solution for your application. Our aim is your complete satisfaction with the performance of our products. We are confident we can provide the right belt, sprockets and other components you need.
